Pressure Sensor
Technical Specifications
For detailed parameters, please contact our technical engineers.
Customization Notice
The parameters listed above represent standard production ranges. We possess flexible customization capabilities. If your application falls outside these parameters, please contact us immediately.
Product Description & Application Scope
Key Mechanical & Electrical Features
- High mechanical quality factor (Qm > 1100) minimizes internal friction and heating under high electric field drive.
- Superior piezoelectric constant d33 ensuring high acoustic power density output per unit area.
- Controlled atmosphere sintering eliminates microscopic porosity, guaranteeing high mechanical tensile strength.
Typical Industry Applications
- Industrial Ultrasonic Cleaning Tanks & Cavitation Generators
- Ultrasonic Plastic / Metal Wire Welding Transducer Stacks
- Underwater Acoustic Hydrophones & Marine Active Sonar Arrays
- Medical Ultrasound Surgical Instruments & Focused Transducers
Electromechanical Parameter Matrix
Test Conditions: 25°C, 1kHz, 1V RMS| Symbol | Parameter Description | Unit | PZT-4 (Hard) | PZT-8 (High Power) | Tolerance |
|---|---|---|---|---|---|
| d33 | Piezoelectric Charge Constant | pC / N | 320 | 290 | ± 5% |
| kp | Planar Electromechanical Coupling | - | 0.58 | 0.54 | ± 0.02 |
| Qm | Mechanical Quality Factor | - | 500 | 1100 | ± 10% |
| tan δ | Dielectric Loss Angle (1kHz) | % | 0.4% | 0.2% | Max |
| εr33 / ε0 | Relative Dielectric Permittivity | - | 1300 | 1000 | ± 10% |
| Tc | Curie Temperature | °C | 325°C | 350°C | Min |
| ρ | Density | g/cm³ | 7.65 | 7.60 | ± 0.1 |
2D Technical Blueprint & Electrode Pattern
Standard Tolerances: OD/ID ±0.05mm, Thickness ±0.02mm
Piezoelectric Ceramics Material Selection Matrix
Hard Piezo Ceramic
High coercive field, recommended for medium-power ultrasonic transducers and sonar emitters.
Ultra High-Power Ceramic
Lowest dielectric loss (<0.2%) under intense drive. Standard choice for 20-40kHz heavy ultrasonic cleaning.
Soft Piezo Ceramic
Ultra-high dielectric permittivity (>3200) and d33 coefficient (>590pC/N). Designed for hydrophones and micro-actuators.
Related Piezoelectric Products
View Full Catalog →

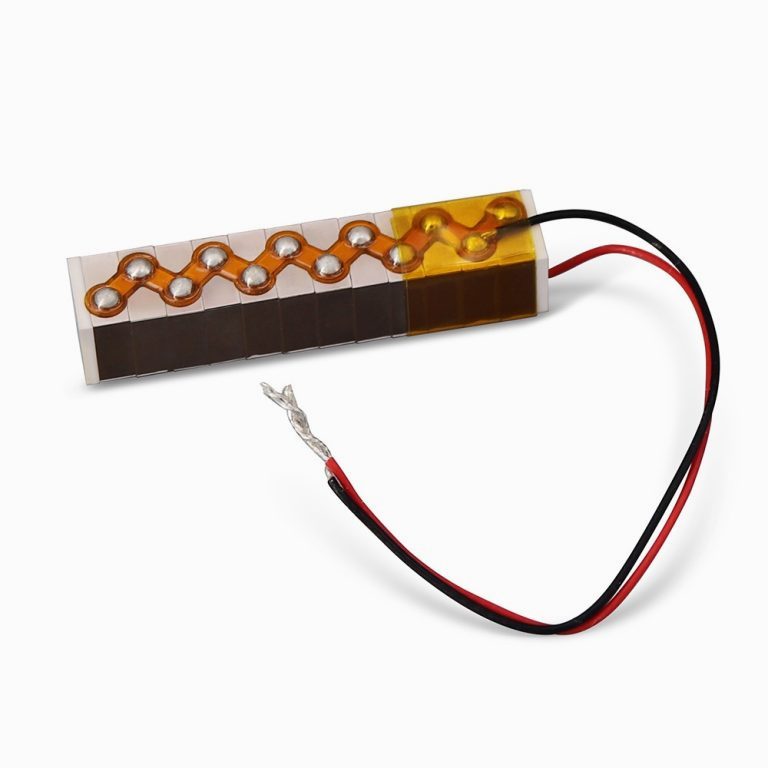

Multilayer Piezoelectric Ceramic Stack Dispensing Valve

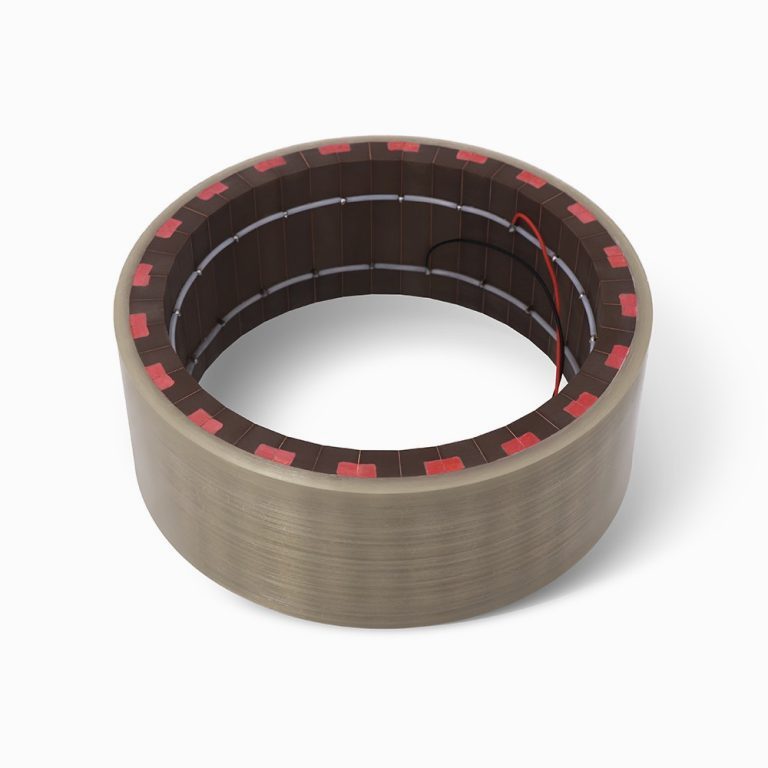

Mosaic Ring PZT (Trapezoidal) + Thin Electrode

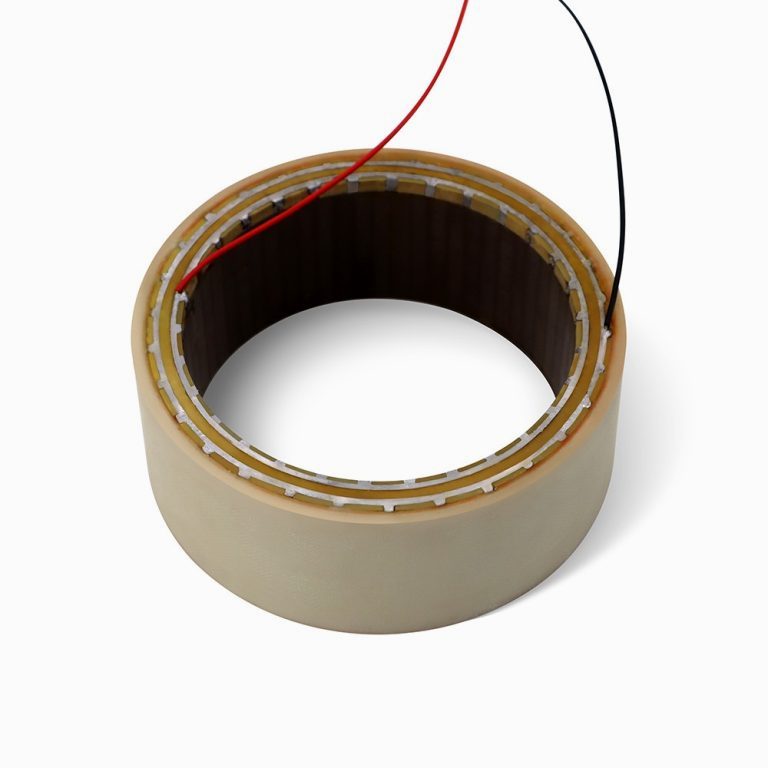

Mosaic Ring PZT (Trapezoidal) + Horizontal Wire Disc
